No Filter Replacement Needed
-
Zero Clogging Potential
-
Collection Efficiency > 99%
-
Suitable for Oil & Water-Soluble Coolant Collection

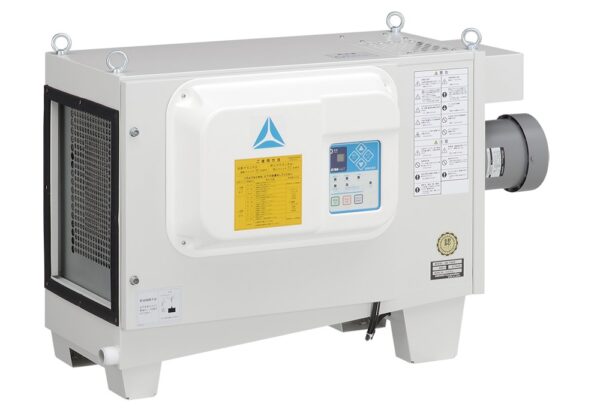

EM-eII Series Electro-Static Mist Collector
POWERFUL COLLECTION OF HIGH CONCENTRATED MIST UP TO 200MG/M3
The EM-eII Series Electro-Static mist collectors is one of the most innovative and technologically advanced collectors in the industry. By utilizing tungsten electrode technology, the EM series show cases superb durability and collection effectiveness. This, along with the elimination of filters and the clogging associated with them, not only provides a reduction in maintenance and operational costs but keeps this design environmentally friendly as well.

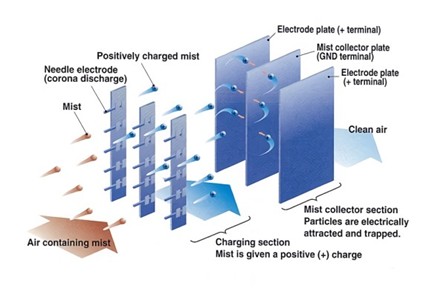

Breakthrough Electronic Trapping Method

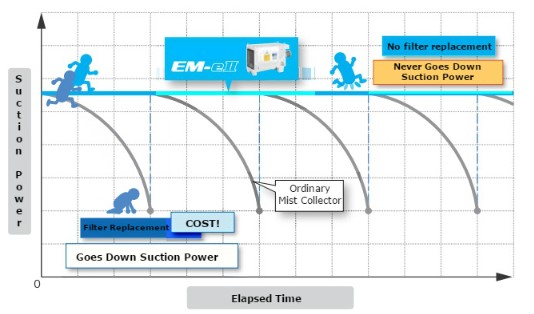

No Clogged Filter
No filter results in no drop in air flow due to clogging. Air flow is aways stable during operation
Heavy/Straight Oil vs Water-soluble Coolant Mist
“MIST” characteristics depend on cutting fluid type (Water-based or Heavy/Straight Oil). “Mist” is cutting fluid “vaporized” by heat. Processes using Water-soluble Coolant result in larger mist particle sizes. Typically between 2-10μm. Heavy/Straight oil mist particles are smaller, 2μm and below. The particle size difference and concentration between Water-soluble Coolant and Heavy/Straight oil is more than 10 times. If you are using Heavy/Straight oil as your cutting fluid, the EM-eII Series is the right machine

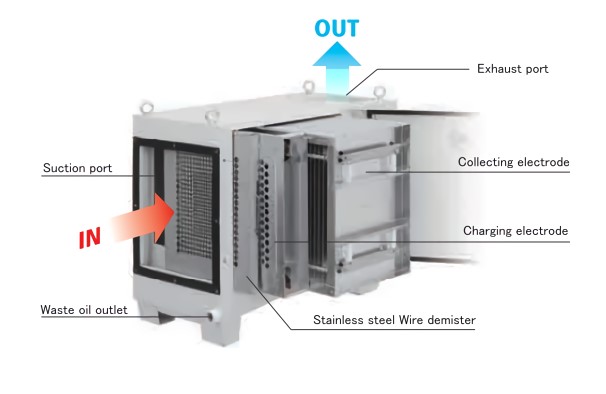

Internal Structures

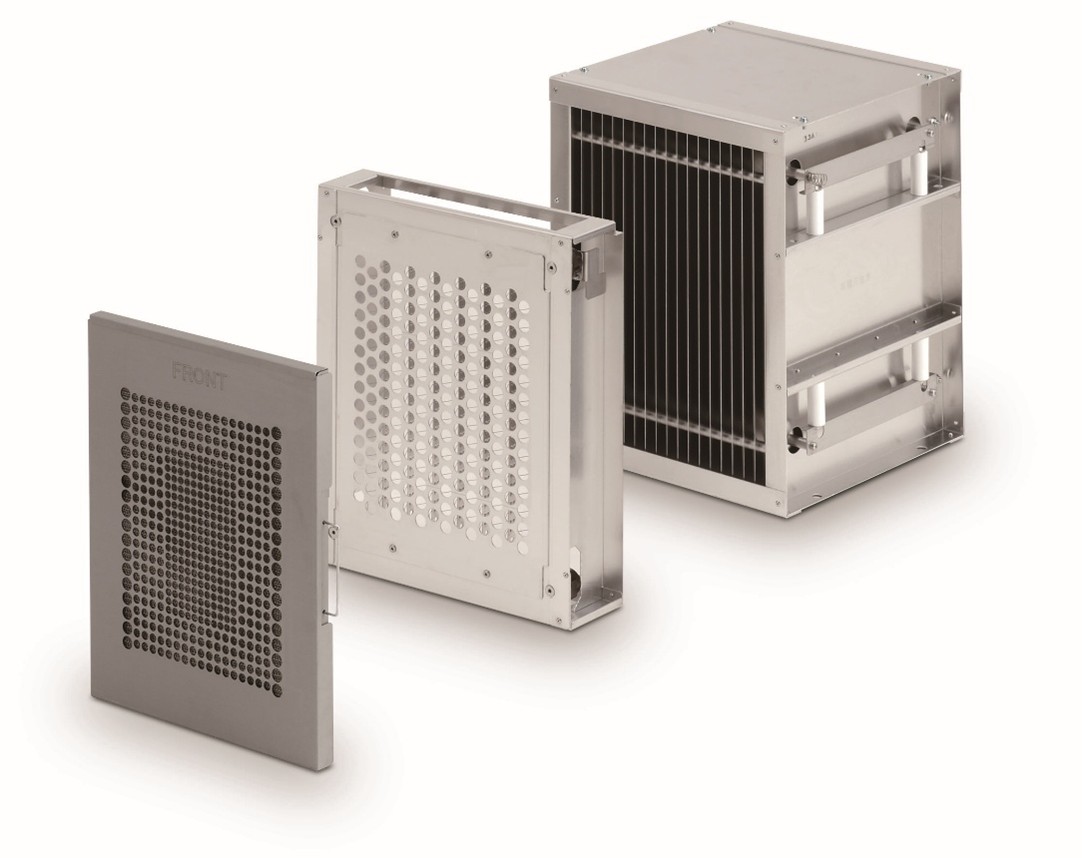

Eliminator / Charging Electrode / Collecting Electrode:

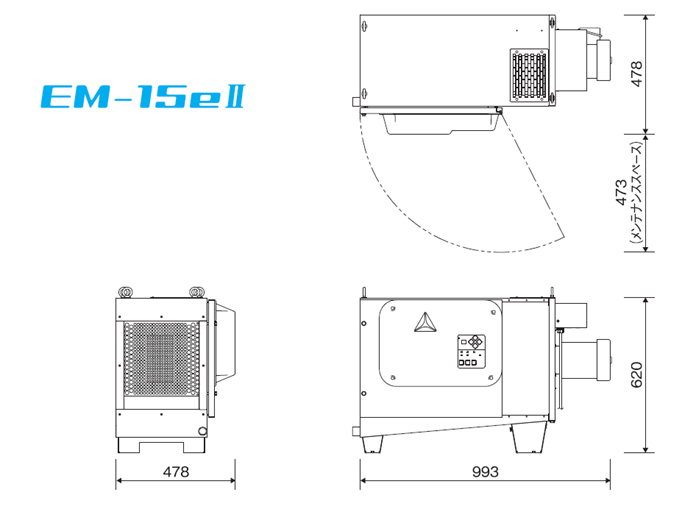

Dimensions EM-15eII

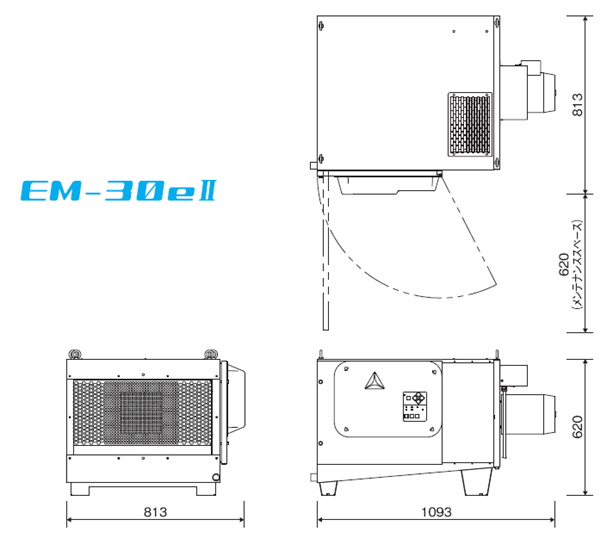

Dimensions EM-30eII

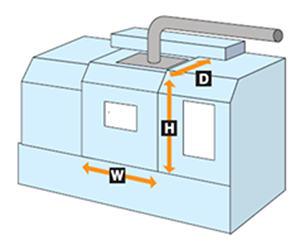

CFM Calculation – HIGH
When mist density is HIGH (attached to working machine)
Q(m3/min)=(W×D×H)×4.0
Q: Mist collector air flow (air volume)
WxDxH: Workshop volume (m3)
4.0: No. of times per minute that workshop air is refreshed
| 60Hz | WxDxH | Model |
| 1.85m3 | EM-8eII | |
| 1.85m3 ~ 3.75m3 | EM-15eII | |
| 3.75m3 ~ 7.5m3 | EM-30eII |
CFM Calculation – LOW
When mist density is LOW
Q(m3/min)=(A×B)×V(m/s)×60(min)
Q: Mist collector air flow (air volume)
AxB: Door dimensions (m2)
V: Airflow required for mist collection (=0.5m/s)
| 60Hz | WxDxH | Model |
| .25m2 | EM-8eII | |
| .25m2 ~ .5m2 | EM-15eII | |
| .5m2 ~ 1m2 | EM-30eII |
